States of Water

Introduction to Water States

Water exists in three states: solid (ice), liquid (water), and gas (water vapour). Ice is solid, hard, and retains its shape, while water is liquid, flows, and takes the shape of its container. Water vapour is the gaseous form, spreading out and filling the space available.

Changing States of Water

Water changes state by heating or cooling. Ice melts into water at 06C, and water freezes into ice at the same temperature. Evaporation is the process where liquid water turns into vapour, and condensation is when vapour turns back into liquid. These changes involve no change in chemical composition; water remains H8O.

Factors Affecting Evaporation

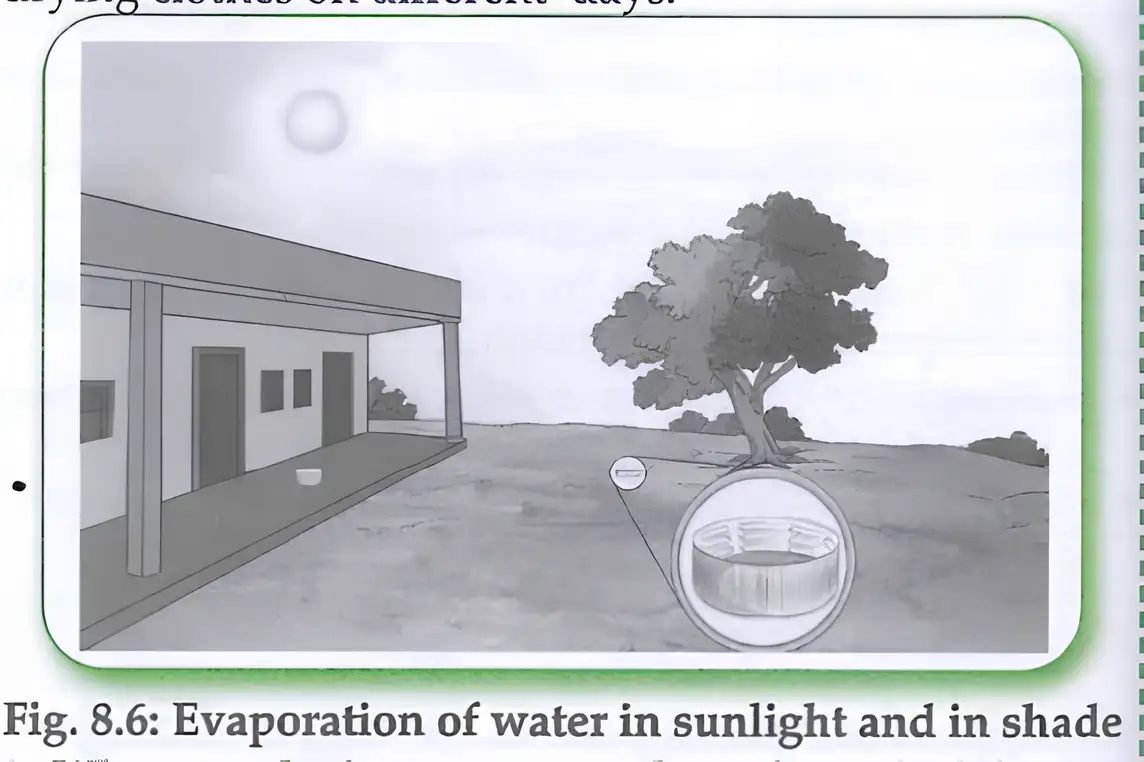

The rate of evaporation depends on temperature, surface area, humidity, and air movement. Higher temperature and larger surface area increase evaporation, while higher humidity slows it down. Wind or air movement speeds up evaporation by removing vapour from the surface.

Water Cycle

The water cycle describes the continuous movement of water between the Earth's surface and the atmosphere through evaporation, condensation, and precipitation. Water evaporates from oceans and land, condenses to form clouds, and falls back as rain, hail, or snow, replenishing water sources.

Solved Examples

Example 1: Melting Ice

Ice at 06C is left at room temperature (256C). What state change occurs?

Solution: Ice absorbs heat from the surroundings and melts into liquid water at 06C. This is the melting process.

Example 2: Evaporation Rate

Water in a shallow pan evaporates faster than in a narrow bottle. Why?

Solution: The shallow pan has a larger surface area exposed to air, allowing more water molecules to escape as vapour, increasing the evaporation rate.

Practice Set

• Level 1: What are the three states of water? Describe one characteristic of each.
• Level 2: Explain why water evaporates faster on a hot, windy day than on a cold, humid day.
• Level 3: Design an experiment to investigate how surface area affects the rate of evaporation of water.

Answer Key

• Level 1: Solid (ice) - retains shape; Liquid (water) - flows and takes container shape; Gas (water vapour) - spreads out and fills space.
• Level 2: Higher temperature provides more energy for water molecules to escape; wind removes vapour, increasing evaporation; low humidity allows more evaporation.
• Level 3: Use containers with different surface areas but equal water volume; measure time for water to evaporate; compare results to see effect of surface area.

Evaporation and Condensation

Evaporation Process

Evaporation is the change of water from liquid to gas due to heat. Water molecules gain energy and escape into the air as vapour. Examples include drying wet clothes and water disappearing from puddles.

Condensation Process

Condensation is the change of water vapour back into liquid when cooled. This forms droplets on cold surfaces, such as dew on grass or water droplets on a cold glass.

Factors Influencing Condensation

Condensation occurs when warm moist air cools, often around dust particles. This process is essential for cloud formation and precipitation.

Solved Examples

Example 1: Dew Formation

Why do dew drops form on grass in the early morning?

Solution: Overnight, air temperature drops, cooling the moist air. Water vapour condenses into tiny droplets on grass surfaces, forming dew.

Example 2: Water Droplets on Glass

Why do water droplets appear on the outside of a cold glass?

Solution: Warm air around the glass cools on contact with the cold surface, causing water vapour to condense into liquid droplets.

Practice Set

• Level 1: Define evaporation and condensation with examples.
• Level 2: Explain why water droplets form on the outside of a cold glass.
• Level 3: Describe an activity to demonstrate condensation using a glass tumbler and ice water.

Answer Key

• Level 1: Evaporation: liquid to gas (e.g., drying clothes); Condensation: gas to liquid (e.g., dew formation).
• Level 2: Warm moist air cools on the cold glass surface, water vapour condenses into droplets.
• Level 3: Place ice cubes in a glass tumbler with water; observe water droplets forming on the outside due to condensation.

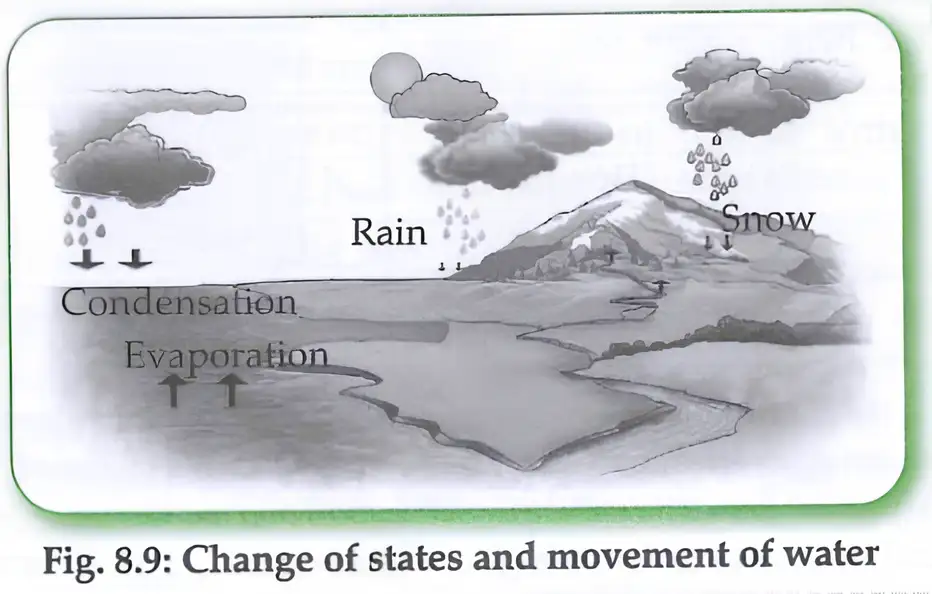

Water Cycle

Overview of the Water Cycle

The water cycle is the continuous movement of water on Earth through evaporation, condensation, precipitation, and collection. It maintains the balance of water in the environment.

Stages of the Water Cycle

1. Evaporation: Water from oceans, lakes, and rivers turns into vapour due to heat.
2. Condensation: Vapour cools and forms clouds.
3. Precipitation: Water falls as rain, snow, or hail.
4. Collection: Water collects in bodies of water, starting the cycle again.

Importance of the Water Cycle

The water cycle replenishes freshwater sources, supports life, and regulates climate.

Solved Examples

Example 1: Cloud Formation

How do clouds form in the atmosphere?

Solution: Warm moist air rises and cools; water vapour condenses around dust particles forming tiny droplets that gather as clouds.

Example 2: Rainfall

What causes rain to fall from clouds?

Solution: When water droplets in clouds combine and become heavy, they fall as precipitation due to gravity.

Practice Set

• Level 1: List the four main stages of the water cycle.
• Level 2: Explain the role of condensation in the water cycle.
• Level 3: Describe how dust particles help in cloud formation.

Answer Key

• Level 1: Evaporation, Condensation, Precipitation, Collection.
• Level 2: Condensation cools water vapour into droplets forming clouds, essential for precipitation.
• Level 3: Dust particles act as nuclei for water vapour to condense around, aiding cloud formation.

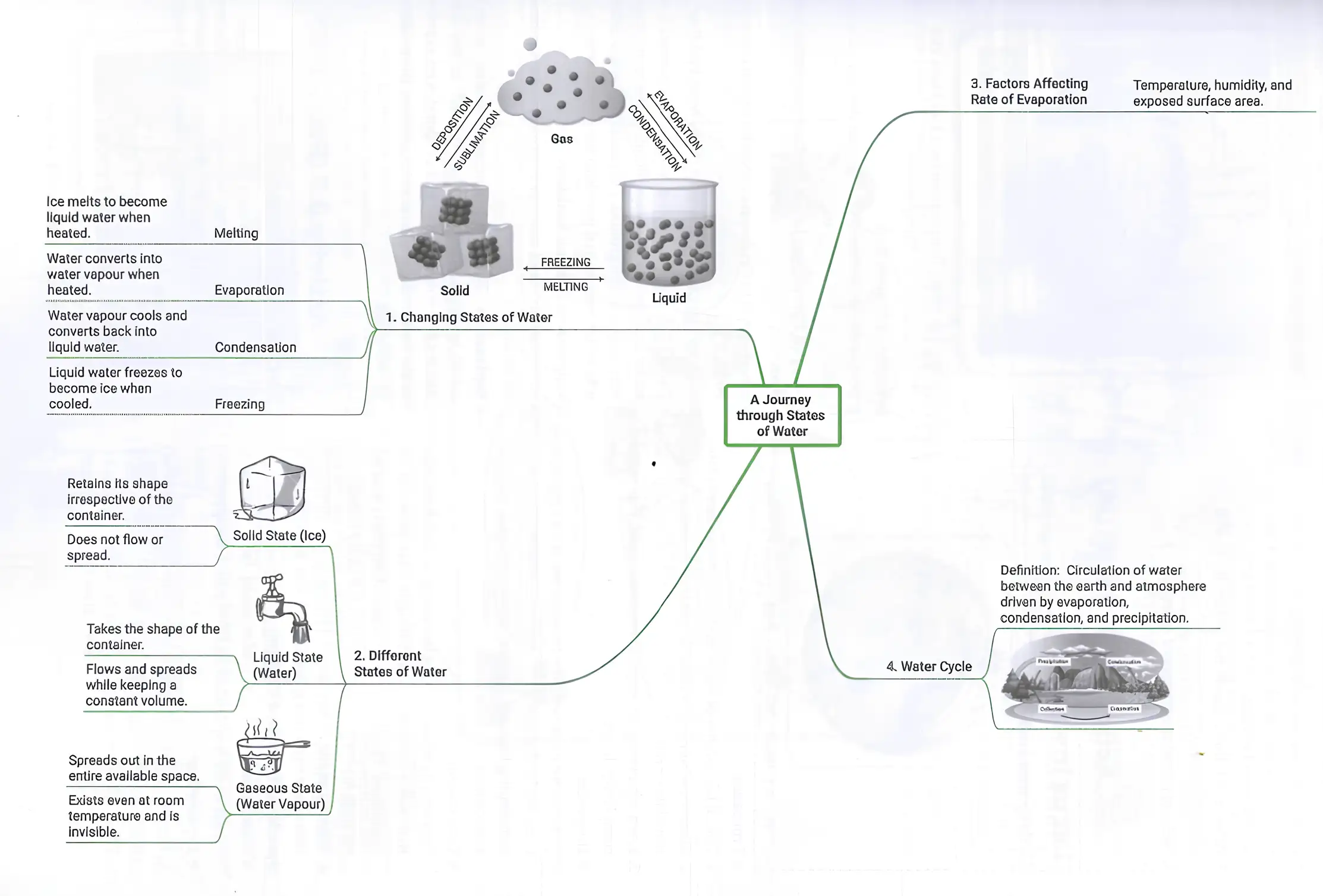

Quick Reference Table

States of Water: Solid (ice), liquid (water), and gas (water vapour) are the three states of water. Ice melts at 06C to become water, and water freezes at the same temperature to become ice.

Evaporation and Condensation: Evaporation is the process of liquid water turning into vapour due to heat. Condensation is the reverse process where vapour cools and turns back into liquid water.

Water Cycle: The continuous movement of water through evaporation, condensation, precipitation, and collection maintains Earth's water balance.

Factors Affecting Evaporation: Temperature, surface area, humidity, and air movement influence how fast water evaporates. Higher temperature and larger surface area increase evaporation, while higher humidity slows it down. Wind speeds up evaporation by moving vapour away.

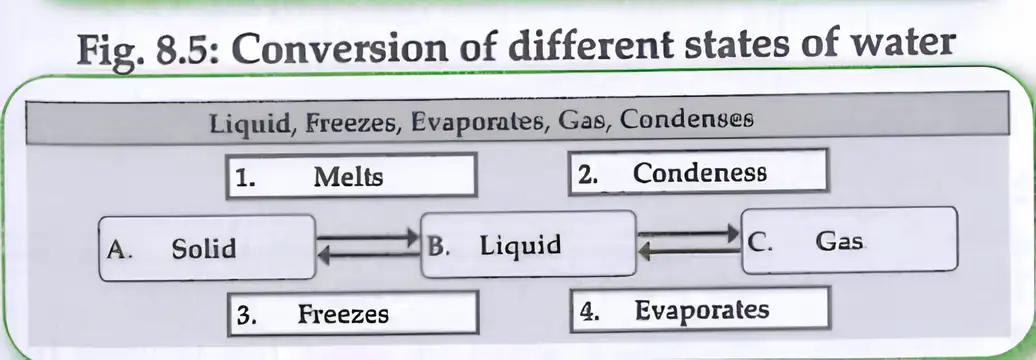

Key Processes:

• Melting: Solid to liquid (e.g., ice to water)
• Freezing: Liquid to solid (e.g., water to ice)
• Evaporation: Liquid to gas (e.g., water to vapour)
• Condensation: Gas to liquid (e.g., vapour to water droplets)
• Precipitation: Water falling from clouds as rain, snow, hail, or sleet

Common Mistakes and Misconceptions

Misconception 1: Ice and water are different substances. Correction: Ice and water are the same substance (H8O) in different states.

Misconception 2: Water disappears when it evaporates. Correction: Water changes state from liquid to gas and enters the atmosphere; it does not vanish.

Misconception 3: Water seeps through solid surfaces like steel plates or glass tumblers. Correction: Water does not seep through these surfaces; it evaporates or condenses on them.

Misconception 4: Dew drops form from water seeping out of plants or surfaces. Correction: Dew forms by condensation of water vapour from the air on cool surfaces.

Misconception 5: Evaporation only happens at boiling point. Correction: Evaporation occurs at all temperatures but faster at higher temperatures.

Misconception 6: The smell of food spreads because the food moves through the air. Correction: Odour molecules spread through the air, allowing us to smell food without the food itself moving.

Glossary

Melting: The process of a solid turning into a liquid when heated.

Freezing: The process of a liquid turning into a solid when cooled.

Evaporation: The process where liquid water changes into water vapour due to heat.

Condensation: The process where water vapour cools and changes back into liquid water.

Precipitation: Any form of water, such as rain, snow, hail, or sleet, that falls from the atmosphere to the Earth's surface.

Surface Area: The extent of a surface exposed; larger surface area increases the rate of evaporation.

Water Cycle: The continuous movement of water between the Earth's surface and the atmosphere through evaporation, condensation, precipitation, and collection.

Humidity: The amount of water vapour present in the air; higher humidity slows evaporation.

Dust Particles: Tiny particles in the atmosphere that act as nuclei for water vapour to condense and form clouds.

Cooling Effect: The process where evaporation removes heat from a surface, causing cooling, such as water evaporating from an earthen pot.
