Insights into Rutherford’s Atomic Structure Model
Exploring the Alpha Particle Scattering Investigation
Design and Execution of the Alpha Scattering Test
Ernest Rutherford devised a pivotal experiment where he directed a beam of alpha particles, which are helium nuclei, at an ultra-thin gold foil approximately 100 nanometers thick. To detect the deflection of these particles after interaction, a fluorescent zinc sulphide screen was arranged around the foil. This setup allowed Rutherford to observe the scattering patterns and trajectories of the alpha particles post-collision.
Example Problem
In a similar experiment, alpha particles with kinetic energy of \( 5.0 \times 10^{-13} \text{J} \) are fired at a thin silver foil. If the foil thickness is \( 120 \text{ nm} \), estimate the likelihood of an alpha particle passing through without deflection assuming the atomic spacing is similar to gold.
Solution:
The probability of an alpha particle passing undeflected depends on the empty space in the atom. Since the atomic structure is mostly empty space, the majority of alpha particles pass through. Given the foil thickness is slightly greater than gold foil, the chance remains high, approximately over 95%. This aligns with Rutherford’s observation that most alpha particles pass through thin metal foils without deflection.
Key Findings from the Alpha Scattering Observations
Interpretation of Particle Deflection Patterns
Rutherford’s observations revealed that a vast majority of alpha particles traversed the gold foil without any deviation, indicating that atoms are predominantly empty space. A smaller portion of particles experienced slight deflections, suggesting that the positive charge within the atom is concentrated rather than spread out evenly. Remarkably, a very few alpha particles were deflected backward at angles close to \(180^\circ\), implying the presence of a compact, dense, positively charged core within the atom.
Patterns of Alpha Particle Deflection Observed
Example Problem
During an alpha scattering experiment, 1 in 8000 alpha particles is deflected back at angles greater than \(150^\circ\). If 1,600,000 alpha particles are fired, estimate how many will be deflected backward.
Solution:
Number of backward deflected particles = \( \frac{1}{8000} \times 1,600,000 = 200 \) particles.
This small fraction confirms the nucleus occupies a tiny volume compared to the atom’s overall size.
Rutherford’s Atomic Model: Structure and Principles
Conceptualizing the Atom’s Internal Arrangement

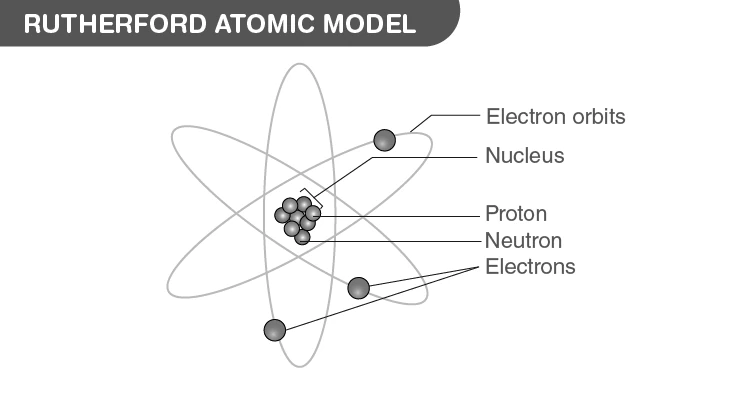

Building on his experimental insights, Rutherford proposed that an atom’s positive charge and most of its mass are concentrated in a minuscule central region called the nucleus. Surrounding this nucleus, negatively charged electrons orbit at high velocities along defined circular paths termed orbits. The electrostatic attraction between the positively charged nucleus and the negatively charged electrons maintains the electrons in their orbits, ensuring atomic cohesion.
Example Problem
Consider an electron revolving around a nucleus at a radius of \( 5.0 \times 10^{-11} \text{ m} \) with a speed of \( 2.0 \times 10^{6} \text{ m/s} \). Calculate the centripetal force acting on the electron. (Electron mass \( m = 9.11 \times 10^{-31} \text{ kg} \))
Solution:
The centripetal force \( F_c \) is given by:
\[ F_c = \frac{m v^2}{r} \]
Substituting values:
\[ F_c = \frac{9.11 \times 10^{-31} \times (2.0 \times 10^{6})^2}{5.0 \times 10^{-11}} = \frac{9.11 \times 10^{-31} \times 4.0 \times 10^{12}}{5.0 \times 10^{-11}} = 7.29 \times 10^{-8} \text{ N} \]
This force is provided by the electrostatic attraction between the electron and nucleus.
Shortcomings of Rutherford’s Atomic Framework
Challenges in Explaining Atomic Stability and Electron Arrangement
Despite its groundbreaking nature, Rutherford’s model could not account for certain phenomena. According to classical electromagnetism, electrons accelerating in circular orbits should emit electromagnetic radiation, losing energy and spiraling into the nucleus rapidly—within approximately \(10^{-8}\) seconds—rendering atoms unstable. Additionally, Rutherford’s model did not clarify how electrons are arranged in these orbits, leaving the atomic structure incomplete.
Example Problem
If an electron orbiting the nucleus emits radiation and loses energy at a rate of \( 1.0 \times 10^{-8} \text{ J/s} \), estimate the time it would take for the electron to lose \( 1.0 \times 10^{-16} \text{ J} \) of energy and collapse into the nucleus.
Solution:
Time \( t = \frac{\text{Energy lost}}{\text{Power}} = \frac{1.0 \times 10^{-16}}{1.0 \times 10^{-8}} = 1.0 \times 10^{-8} \text{ s} \).
This rapid collapse contradicts the observed stability of atoms, highlighting the model’s inadequacy.
Summary Table: Rutherford’s Atomic Model Essentials
Aspect | Details |
|---|---|
Experiment | Alpha particle scattering on thin gold foil |
Key Observation | Most alpha particles passed undeflected; few deflected at large angles |
Atomic Structure | Small, dense, positively charged nucleus with electrons orbiting around |
Electron Orbits | Electrons revolve in circular paths held by electrostatic attraction |
Limitations | Could not explain atomic stability or electron arrangement |
Glossary of Key Terms
Term | Definition |
|---|---|
Alpha Particle | A helium nucleus consisting of two protons and two neutrons |
Atomic Nucleus | The dense, positively charged center of an atom containing protons |
Electrostatic Force | Attractive or repulsive force between charged particles |
Orbit | Fixed circular path in which electrons revolve around the nucleus |
Deflection | Change in direction of a particle after collision or interaction |
Fluorescent Screen | Material that emits light when struck by charged particles |
Atomic Model | Theoretical representation of the structure of an atom |
Mass Concentration | Distribution of mass within the atom, mostly in the nucleus |
Accelerated Charge | A charged particle undergoing change in velocity or direction |
Electromagnetic Radiation | Energy emitted by accelerating charged particles in the form of waves |
Frequently Asked Questions
What distinguished Rutherford’s atomic model from earlier theories?
Rutherford was the first to identify a compact, positively charged nucleus at the center of the atom, replacing the earlier idea of a diffuse positive charge.
How did Rutherford describe the movement of electrons?
He proposed that electrons orbit the nucleus in circular paths at high speeds, held by electrostatic attraction.
Why is Rutherford’s model considered incomplete?
It could not explain why electrons do not spiral into the nucleus due to energy loss, nor did it clarify the arrangement of electrons in atoms.
What was the main experimental method used by Rutherford?
He performed the alpha particle scattering experiment by bombarding thin metal foils with alpha particles and observing their deflections.
What was the crucial conclusion about atomic structure from Rutherford’s experiment?
That atoms consist mostly of empty space with a tiny, dense, positively charged nucleus containing most of the atom’s mass.
