Comprehensive Guide to Moving Coil Galvanometers
Fundamentals and Design of Moving Coil Galvanometers
Understanding the Moving Coil Galvanometer
A moving coil galvanometer is a precision instrument designed to detect and measure very small electric currents, often in the microampere range. It operates on the principle that a current-carrying coil placed within a magnetic field experiences a torque proportional to the current flowing through it. This deflection is then translated into a readable scale value.
Historically, various types of galvanometers have been developed, including tangent, astatic, mirror, and ballistic galvanometers. However, the moving coil galvanometer, also known as the D’Arsonval or Weston galvanometer, remains the most widely used due to its sensitivity and accuracy.
Structural Components and Assembly
The core of the moving coil galvanometer is a rectangular coil made from fine, insulated copper wire wound on a lightweight metallic frame. This coil is suspended so it can rotate freely about a fixed axis within a uniform radial magnetic field. The suspension is achieved using a phosphor-bronze strip connected to a torsion head, chosen for its excellent electrical conductivity and low torsional stiffness.
To enhance the magnetic field strength and ensure it remains radial, a cylindrical soft iron core is placed symmetrically inside the coil. The coil's lower end is attached to a phosphor-bronze spring, which provides a restoring torque opposing the coil's deflection. A mirror attached to the suspension wire, combined with a lamp and scale setup, allows precise measurement of the coil's angular displacement.

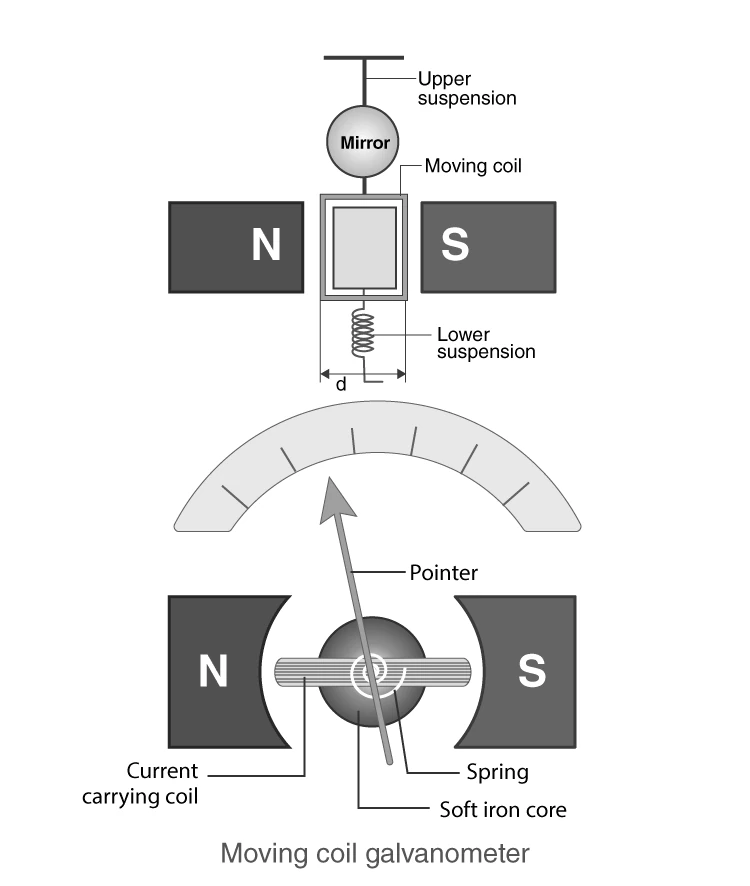

Illustration of the moving coil galvanometer's construction
Example Problem: Why is a Soft Iron Core Used Inside the Coil?
Question: Explain the role of the cylindrical soft iron core placed inside the moving coil galvanometer.
Answer: The soft iron core intensifies the magnetic field within the coil, thereby increasing the galvanometer's sensitivity. It also ensures the magnetic field remains radial, maintaining a constant angle between the coil plane and magnetic lines of force during rotation, which is essential for accurate measurement.
Operational Principles and Performance Metrics
How the Moving Coil Galvanometer Functions
When a current \( I \) passes through a coil of \( n \) turns, each with an area \( A \), placed in a magnetic field of strength \( B \), the coil experiences a magnetic torque \( \tau \). Considering a single rectangular loop with length \( l \) and breadth \( b \), the sides perpendicular to the magnetic field experience forces given by \( F = BIl \).
These forces form a couple producing torque:
\[ \tau = F \times b = BIlb \]
Since \( A = l \times b \), for \( n \) turns, the total torque is:
\[ \tau = n I A B \]
This torque causes the coil to rotate, twisting the suspension wire and spring, which exert a restoring torque \( k \theta \), where \( k \) is the torsional constant and \( \theta \) the angular deflection. At equilibrium:
\[ k \theta = n I A B \]
Rearranged, the deflection is proportional to the current:
\[ \theta = \frac{n A B}{k} I \]
This linear relationship allows the galvanometer to measure current by observing the angular displacement.
Forces on coil sides in a magnetic field causing torque
Example Problem: Calculating Deflection for a Given Current
Question: A coil with 50 turns and an area of \( 2 \times 10^{-4} \text{ m}^2 \) is placed in a magnetic field of strength \( 0.3 \text{ T} \). The torsional constant of the suspension is \( 0.02 \text{ Nm/rad} \). Find the angular deflection when a current of \( 5 \times 10^{-4} \text{ A} \) flows through the coil.
Solution:
Given: \( n = 50 \), \( A = 2 \times 10^{-4} \text{ m}^2 \), \( B = 0.3 \text{ T} \), \( k = 0.02 \text{ Nm/rad} \), \( I = 5 \times 10^{-4} \text{ A} \).
Using the formula:
\[ \theta = \frac{n A B}{k} I = \frac{50 \times 2 \times 10^{-4} \times 0.3}{0.02} \times 5 \times 10^{-4} \]
\[ = \frac{0.003}{0.02} \times 5 \times 10^{-4} = 0.15 \times 5 \times 10^{-4} = 7.5 \times 10^{-5} \text{ radians} \]
The coil deflects by \( 7.5 \times 10^{-5} \) radians for the given current.
Enhancing Sensitivity and Practical Applications
Quantifying and Improving Galvanometer Sensitivity
Sensitivity of a moving coil galvanometer is defined as the ratio of the change in angular deflection to the change in current:
\[ S = \frac{d\theta}{dI} \]
Current sensitivity is expressed as:
\[ \frac{\theta}{I} = \frac{n A B}{k} \]
Voltage sensitivity, which relates deflection to voltage, is given by:
\[ \frac{\theta}{V} = \frac{n A B}{k R} \]
where \( R \) is the total resistance in the circuit. Voltage sensitivity is directly proportional to current sensitivity and inversely proportional to resistance.
Factors influencing sensitivity include the number of coil turns, coil area, magnetic field strength, and the torsional constant of the suspension.
Example Problem: Effect of Current Sensitivity on Voltage Sensitivity
Question: Does increasing the current sensitivity of a moving coil galvanometer always increase its voltage sensitivity? Explain.
Answer: Not necessarily. Increasing current sensitivity often involves increasing the number of coil turns, which raises the coil's resistance. Since voltage sensitivity is inversely proportional to resistance, the increase in resistance can offset the gain in current sensitivity, leaving voltage sensitivity unchanged.
Practical Uses and Instrument Conversion
Due to its high sensitivity, the moving coil galvanometer is widely used to detect small currents and measure their magnitude. It is commonly employed in Wheatstone bridge circuits to detect null points where no current flows through the galvanometer.
By adding appropriate resistances, a galvanometer can be transformed into an ammeter or voltmeter:
Ammeter: Connected in parallel with a low-value shunt resistance to allow higher currents to bypass the galvanometer coil.
Voltmeter: Connected in series with a high resistance to measure voltage across components without drawing significant current.
Galvanometer connected with shunt resistance to form an ammeter
Galvanometer connected with series resistance to form a voltmeter
Example Problem: Calculating Current Range of an Ammeter
Question: A moving coil galvanometer with resistance \( 120 \Omega \) and full-scale deflection current of \( 80 \mu A \) is converted into an ammeter by connecting a shunt resistance of \( 0.2 \Omega \) in parallel. Calculate the maximum current the ammeter can measure.
Solution:
Given: \( R_G = 120 \Omega \), \( I_G = 80 \times 10^{-6} \text{ A} \), \( R_S = 0.2 \Omega \).
Total current \( I \) is:
\[ R_G I_G = (I - I_G) R_S \implies I = I_G \left(1 + \frac{R_G}{R_S}\right) \]
\[ I = 80 \times 10^{-6} \times \left(1 + \frac{120}{0.2}\right) = 80 \times 10^{-6} \times (1 + 600) = 80 \times 10^{-6} \times 601 = 0.04808 \text{ A} \]
The ammeter can measure up to approximately \( 48.1 \text{ mA} \).
Example Problem: Designing a Voltmeter from a Galvanometer
Question: A galvanometer with coil resistance \( 50 \Omega \) and full-scale deflection current \( 2 \text{ mA} \) is to be converted into a voltmeter with a range of 0–10 V. Calculate the value of the series resistance required.
Solution:
Given: \( R_G = 50 \Omega \), \( I_G = 2 \times 10^{-3} \text{ A} \), \( V = 10 \text{ V} \).
Using:
\[ V = I_G (R_G + R) \implies R = \frac{V}{I_G} - R_G \]
\[ R = \frac{10}{2 \times 10^{-3}} - 50 = 5000 - 50 = 4950 \Omega \]
A series resistance of \( 4950 \Omega \) is needed.
Advantages and Limitations
Strengths and Weaknesses of Moving Coil Galvanometers
Advantages:
Highly sensitive to small currents.
Minimal influence from external magnetic fields.
High torque-to-weight ratio ensures quick response.
Accurate and reliable readings.
Disadvantages:
Only suitable for measuring direct currents.
Susceptible to errors from aging components, permanent magnet deterioration, and mechanical stress on the suspension spring.
Quick Reference Table
Parameter | Symbol | Typical Unit | Role |
|---|---|---|---|
Number of coil turns | \( n \) | Turns | Determines torque magnitude |
Coil area | \( A \) | \( \text{m}^2 \) | Influences magnetic torque |
Magnetic field strength | \( B \) | Tesla (T) | Creates torque on coil |
Torsional constant | \( k \) | \( \text{Nm/rad} \) | Restores coil to zero position |
Current sensitivity | \( \frac{\theta}{I} \) | \( \text{rad/A} \) | Deflection per unit current |
Voltage sensitivity | \( \frac{\theta}{V} \) | \( \text{rad/V} \) | Deflection per unit voltage |
Galvanometer resistance | \( R_G \) | \( \Omega \) | Resistance of coil |
Shunt resistance | \( R_S \) | \( \Omega \) | Used in ammeter conversion |
Series resistance | \( R \) | \( \Omega \) | Used in voltmeter conversion |
Full-scale deflection current | \( I_G \) | Ampere (A) | Maximum current for full deflection |
Glossary of Key Terms
Term | Definition |
|---|---|
Galvanometer | Instrument for detecting and measuring small electric currents. |
Torque | Rotational force causing the coil to deflect. |
Torsional constant | Measure of the restoring torque per unit angular displacement. |
Shunt resistance | Low resistance connected parallel to galvanometer for ammeter conversion. |
Series resistance | High resistance connected in series with galvanometer for voltmeter conversion. |
Current sensitivity | Deflection angle per unit current. |
Voltage sensitivity | Deflection angle per unit voltage. |
Radial magnetic field | Magnetic field lines directed radially to ensure uniform torque. |
Phosphor-bronze strip | Suspension material providing electrical conductivity and mechanical support. |
Full-scale deflection | Maximum angular displacement corresponding to maximum measurable current. |
Frequently Asked Questions
What is the primary function of a galvanometer?
It detects and measures small electric currents and indicates their direction.
On what principle does a moving coil galvanometer operate?
It works on the principle that a current-carrying coil in a magnetic field experiences a torque proportional to the current.
Who invented the galvanometer?
Johann Schweigger developed the earliest electromagnetic galvanometer.
How can a galvanometer be used as an ammeter or voltmeter?
By connecting a shunt resistance in parallel, it becomes an ammeter; by adding a high resistance in series, it functions as a voltmeter.
Why is a soft iron core used inside the coil?
To strengthen the magnetic field and maintain a radial field for accurate deflection measurement.
