Comprehensive Guide to Circles: Definitions, Properties, and Formulas
Understanding the Circle: Definition and Basic Concepts
Fundamental Description of a Circle
A circle is a perfectly round, two-dimensional shape where every point on its boundary is at the same distance from a fixed point called the center. This distance is known as the radius. The circle can be mathematically represented by the equation:
\[ (x - h)^2 + (y - k)^2 = r^2 \]
Here, \((h, k)\) denotes the coordinates of the center, and \(r\) is the radius. The circle exhibits both reflection symmetry across any line passing through its center and rotational symmetry for any angle about the center.
Visualize a line segment bent so that its endpoints meet, forming a loop with all points equidistant from the center, creating a circle.
Practical Illustration: Constructing a Circle
To draw a circle manually, start by marking a point \(O\) on a sheet as the center. Choose a radius length, for example, 4 cm. Using a ruler, mark points exactly 4 cm away from \(O\) in various directions. Connecting these points will form a circle.
Solution: Connecting all points 5 cm from the center creates a circle with radius 5 cm.

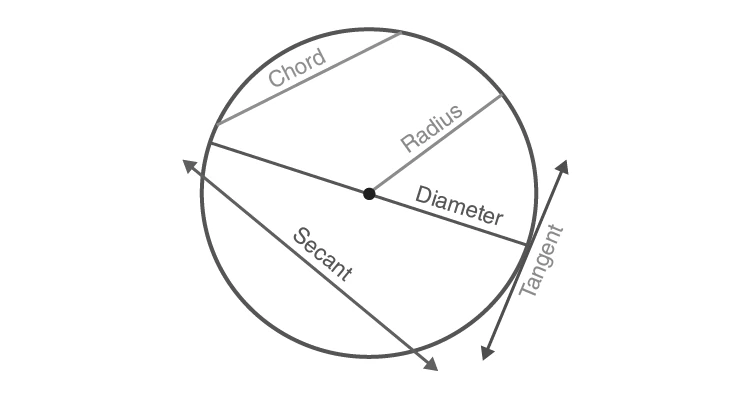

Key Components of a Circle and Their Characteristics
Identifying the Parts of a Circle
A circle consists of several important parts, each with distinct properties:
- Center: The fixed point equidistant from all points on the circle.
- Radius: A line segment from the center to any point on the circle.
- Diameter: The longest chord passing through the center, equal to twice the radius.
- Chord: A line segment with endpoints on the circle but not necessarily passing through the center.
- Secant: A line that intersects the circle at two points, extending beyond the chord.
- Tangent: A line touching the circle at exactly one point.
- Arc: A connected curved segment of the circle's circumference.
- Sector: The region bounded by two radii and the arc between them.
- Segment: The area bounded by a chord and the arc it subtends, excluding the center.
- Annulus: The ring-shaped area between two concentric circles.
Radius and Diameter Explained
The radius (\(r\)) is the distance from the center to any point on the circle. The diameter (\(d\)) is the longest chord passing through the center and is twice the radius:
\[ d = 2r \]
Conversely, the radius can be found from the diameter as:
\[ r = \frac{d}{2} \]
Solution: Using \(r = \frac{d}{2}\), we get \(r = \frac{14}{2} = 7 \text{ cm}\).
Calculating Area and Circumference of a Circle
Formulas for Circle Measurements
The two primary measurements of a circle are its area and circumference (perimeter). The circumference is the distance around the circle, while the area is the space enclosed within it.
The formulas are:
\[ \text{Circumference} = C = 2 \pi r = \pi d \]
\[ \text{Area} = A = \pi r^2 \]
Here, \(\pi\) is approximately 3.1415.

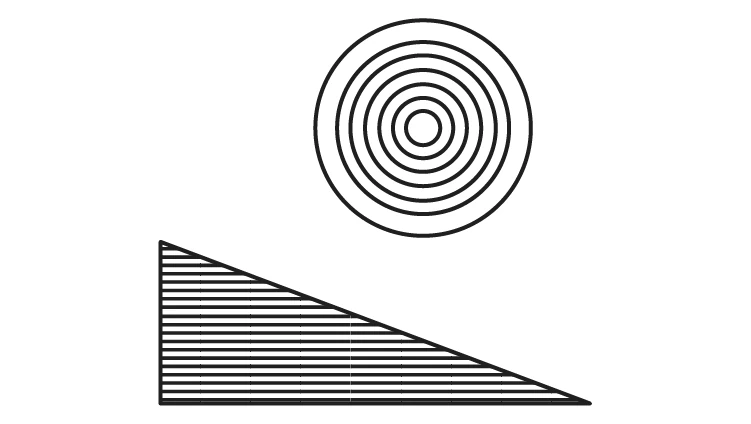

Deriving the Area Formula
The area of a circle can be understood by imagining the circle divided into many concentric rings. When these rings are cut and rearranged, they approximate a right-angled triangle with base equal to the circumference and height equal to the radius.
Thus, the area of the circle equals the area of this triangle:
\[ \text{Area} = \frac{1}{2} \times \text{base} \times \text{height} = \frac{1}{2} \times 2 \pi r \times r = \pi r^2 \]
Solution:
Area: \[ A = \pi r^2 = 3.14 \times 8^2 = 3.14 \times 64 = 200.96 \text{ cm}^2 \]
Circumference: \[ C = 2 \pi r = 2 \times 3.14 \times 8 = 50.24 \text{ cm} \]
Solution:
Radius from circumference: \[ 2 \pi r = 18.84 \implies r = \frac{18.84}{2 \times 3.14} = 3 \text{ cm} \]
Area: \[ A = \pi r^2 = 3.14 \times 3^2 = 3.14 \times 9 = 28.26 \text{ cm}^2 \]
Essential Properties and Real-World Examples of Circles
Fundamental Characteristics of Circles
- The boundary of a circle is always at a constant distance (radius) from its center.
- The diameter divides the circle into two equal halves.
- Circles with the same radius are congruent, meaning they are identical in shape and size.
- Circles with different radii are similar but not congruent.
- The diameter is the longest chord in a circle and equals twice the radius.
Common Circular Objects in Daily Life
Many everyday items exhibit circular shapes, such as:
- Rings
- Compact discs (CDs)
- Bangles
- Coins
- Wheels
- Buttons
- Dartboards
- Hula hoops
These examples help visualize the concept of circles in practical contexts.
Summary Table: Quick Reference for Circle Concepts
| Term | Description | Formula / Value |
|---|---|---|
| Radius (\(r\)) | Distance from center to any point on the circle | Variable \(r\) |
| Diameter (\(d\)) | Longest chord passing through the center | \(d = 2r\) |
| Circumference (\(C\)) | Distance around the circle | \(C = 2 \pi r = \pi d\) |
| Area (\(A\)) | Space enclosed by the circle | \(A = \pi r^2\) |
| Chord | Line segment with endpoints on the circle | Varies |
| Secant | Line intersecting circle at two points | Varies |
| Tangent | Line touching circle at exactly one point | Varies |
| Arc | Connected curved segment of circumference | Varies |
| Sector | Region bounded by two radii and an arc | Varies |
| Segment | Area bounded by chord and arc excluding center | Varies |
Glossary of Key Terms Related to Circles
| Term | Meaning |
|---|---|
| Center | The fixed point equidistant from all points on the circle |
| Radius | Line segment from center to any point on the circle |
| Diameter | Longest chord passing through the center, twice the radius |
| Chord | Line segment with endpoints on the circle |
| Secant | Line intersecting the circle at two points |
| Tangent | Line touching the circle at exactly one point |
| Arc | Connected curved part of the circle's circumference |
| Sector | Area bounded by two radii and the arc between them |
| Segment | Region bounded by a chord and the arc it subtends |
| Annulus | Ring-shaped area between two concentric circles |
Frequently Asked Questions About Circles
What defines a circle in geometry?
A circle is a closed curve where all points on the boundary are equally distant from a fixed center point.
What are the main parts of a circle?
The primary parts include the center, radius, diameter, chord, tangent, secant, arc, sector, and segment.
How do you calculate the circumference of a circle?
The circumference is calculated using \(C = 2 \pi r\) or \(C = \pi d\), where \(r\) is the radius and \(d\) is the diameter.
What is the formula for the area of a circle?
The area is given by \(A = \pi r^2\), where \(r\) is the radius of the circle.
How are radius and diameter related?
The diameter is twice the radius, expressed as \(d = 2r\), and the radius is half the diameter, \(r = \frac{d}{2}\).
